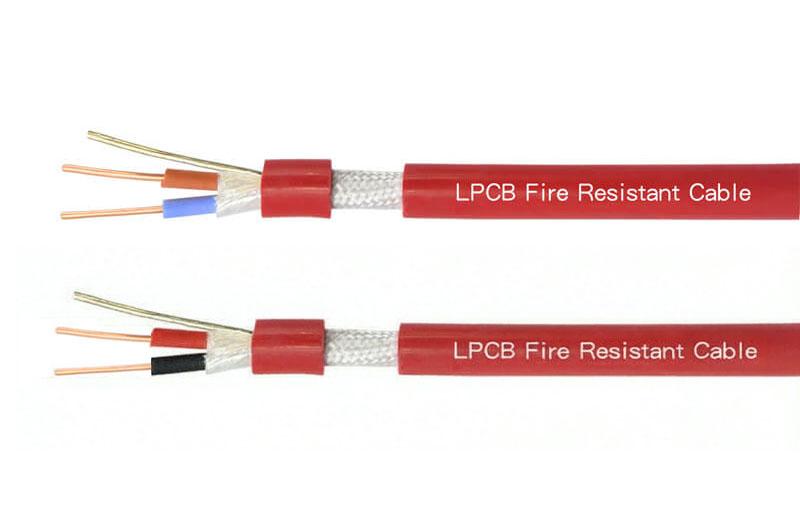

LPCB Fire Resistant Cable

LPCB Fire Resistant Cable

Essential information

  • Brand: LLT
  • Place of origin: Shenzhen, China
  • Specification: 100M / 500m per roll
  • Packaging method: roll / wooden shaft / carton / pallet
  • Place of shipment: Shenzhen
  • Mode of transportation: Sea / land / air
  • Payment method:T / T, L / C, D / P
  • Starting quantity: 5000m
  • Daily production: 1000000m
  • Other services:OEM/ODM

Product overview of Fire Resistant Cable

Fire resistant cable type:PH30 PH60 PH120

Standard fire alarm and security cable. Soft Skin Standard Fire Resistant Cables for general use in fire detection, fire alarm, voice alarm, and emergency lighting circuits. For example: ★ hotels ★ theaters and cinemas ★ museums ★ hospitals ★ shopping centers ★ skyscrapers ★ offices ★ schools ★ Airports★ underground and tunnel ★ railway station ★ computer center ★ alarm system ★ traffic control system ★ fire fighting system

These cables are designed to carry on working for a specific length of time under fire conditions.

CONSTRUCTION of Fire Resistant Cable

Number of cores: 2-4 cores
1.0mm2-2.5mm2: Class 1 solid conductor according to BS EN 60228
4mm2: Class 2 stranded conductor according to BS EN 60228
Insulation: Ceramic silica gel
Drain:Tinned Copper
Overall Screen: AL/PET (Aluminium/Polyester Tape),
Sheath: Low Smoke Zero Halogen (LSZH)

STANDARDS of Fire Resistant Cable

  • ✮ Smoke density:BS EN 61034-2:2005+A2:2020
  • ✮ Corrosive and acid gas:EN 60754-1: 2014
  • ✮ Flame propagation on a single cable:EN 60332-1-2:2004
  • ✮ Fire resistance(single cable):BS6387、BS EN50200、BS 8434-2
  • ✮ Fire resistance time(single cable):PH30-PH120

CHARACTERISTICS of Fire Resistant Cable

Minimum Bending Radius: 12 times cable of outer diameter

Should not be installed at temperatures below 0°C or above +40°C

For more information, please consult members of the lilutong wire and cable sales team

Voltage Rating:300/500V
working temperature: -40°C to +90°C

Outer sheath comes in a choice of:

Outer sheath color:


Core insulation color:

2 core


3 core


4 core

lpcb certificat

Packaging information of Fire Resistant Cable

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

Factory information

  • Super production capacity-more than 100 sets of automated production equipment, 24-hour production system, daily production capacity of 1,000,000 meters of cables
  • Strict quality inspection procedures-material inspection before production, index inspection during production, general quality inspection after production, packaging inspection
  • Complete certificate guarantee-IS09001 certification, IS014001 certification, CCC certification, CE certification, UL certification, LPCB certification, VDE certification, etc., so you can purchase with confidence
  • Efficient packaging and transportation-machineized packaging, fast and clean. Port city, direct air and sea transportation, fast delivery
  • 7*24 hours after-sales service-professionals provide you with services and consultations around the clock
  • We can also provide OEM and ODM services
